Steel Coil Procurement Checklist
This checklist turns a coil requirement into an inquiry a supplier can quote: specification points, winding forms, process notes, documents and inspection. Use the points as a checklist; none of the technical items are required fields in the inquiry form.

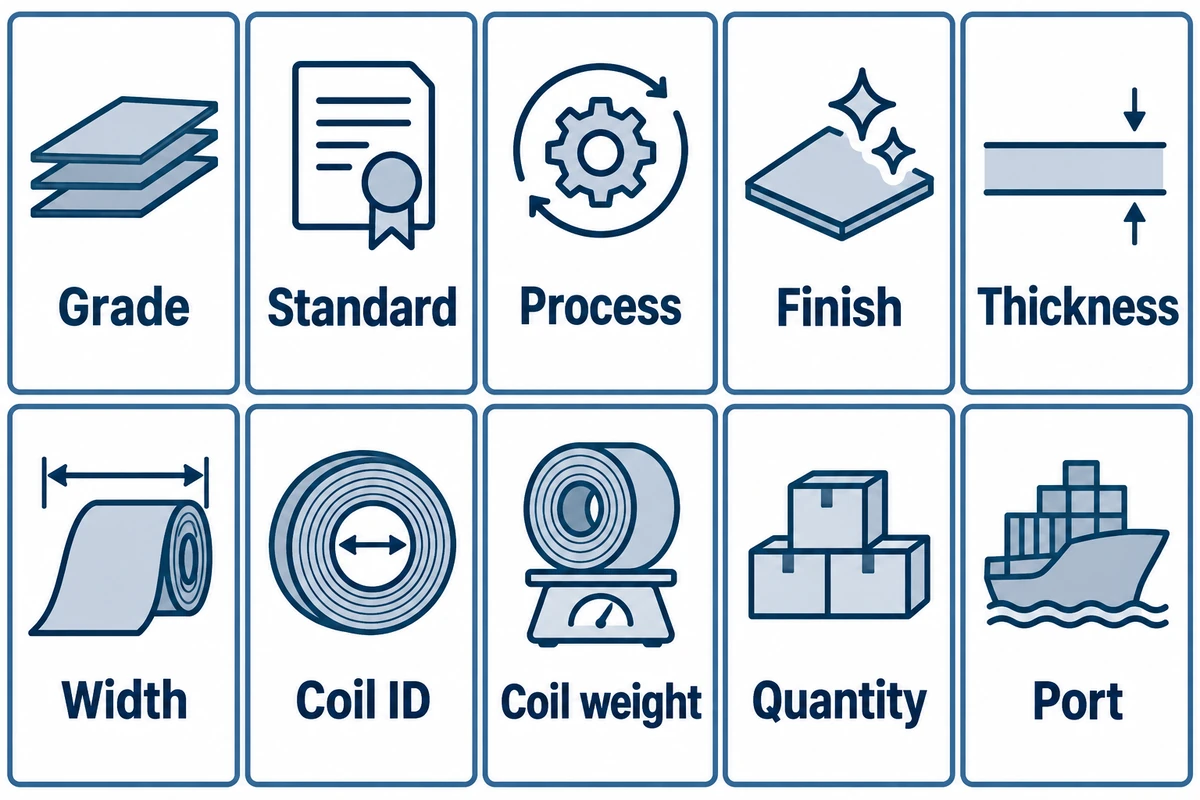

Ten steel coil order fields: grade, standard, process, finish, thickness, width, coil ID, coil weight, quantity and port.
Steel Coil Inquiry Basics
For stainless steel coil, the availability of surface finishes and dimensions depends on the steel grade.
The Stainless Steel Coil page lists the grades, finishes and sizes ZIVO STEEL supplies.
- Stainless steel coilSelect the grade and finish for your specification.
- Carbon steel coilSelect the rolling route and delivery condition for your specification.
- Galvanized steel coilSelect the coating route and designation for your specification.
Specification Checklist
Use this list to prepare a coil inquiry. These points are preparation prompts, not mandatory form fields, and they do not set acceptance values.
- Grade and standardState the full grade designation and the standard used for the order.
- Thickness and widthSpecify the required thickness and width, including the tolerance band to be applied.
- Surface finishName the surface finish and the acceptance condition the coil must meet.
- Edge conditionState the edge condition the order requires.
- Coil inner diameter and weightState the required coil inner diameter and the maximum or target coil weight.
- Protective film and packagingSpecify whether protective film is required and how the coil is to be packaged for transport.
- Grade-dependent availabilityConfirm with the supplier that the requested surface finish and dimensions are available for the specified grade.
- Repeat orders and mixed specificationsFor each material line, record the prior order reference, the current full specification, quantity and every change. A repeated grade name does not establish the same surface, edge, dimensions or delivery condition. ZIVO sales confirms the specification with you before the order and keep the confirmed specification on file.
- Match each line to labels and documentsFor mixed specifications, identify the order line for each coil or package and ask how its coil label, packing list and mill test certificate will be matched at receipt. Photos of coil labels can be provided on request; this does not mean automatic batch tracking.
- Reconfirm the current offerRequest this order’s price, lead time and available grade, finish and size combination. Do not assume a prior quotation, stock position or delivery schedule carries over to the repeat order.
Narrow Strip Coil Winding Forms
Three winding forms are used for stainless strip coil and ultra-narrow strip. Specify the required form in the inquiry.
Pancake (ribbon wound)
A pancake (ribbon wound) coil, also called eye-to-sky, is flat wound and loaded vertically; it is simple to handle and ideal for low to mid-volume jobs.
Oscillate winding
Oscillate winding side-winds strip laterally onto a spool, so several coils' worth of material can be combined into a single, continuous reel, minimizing downtime and eliminating press stops.
Traverse wound coil
Traverse wound coil, mostly used in fine wire and ultra-narrow strip under 0.100 inch, zigzags back and forth across a spool like a fishing reel.
Have a Specification Ready?
Send what you already know, such as grade, finish, size or quantity. Inquiries are answered within 2 hours.
Why Process Matters

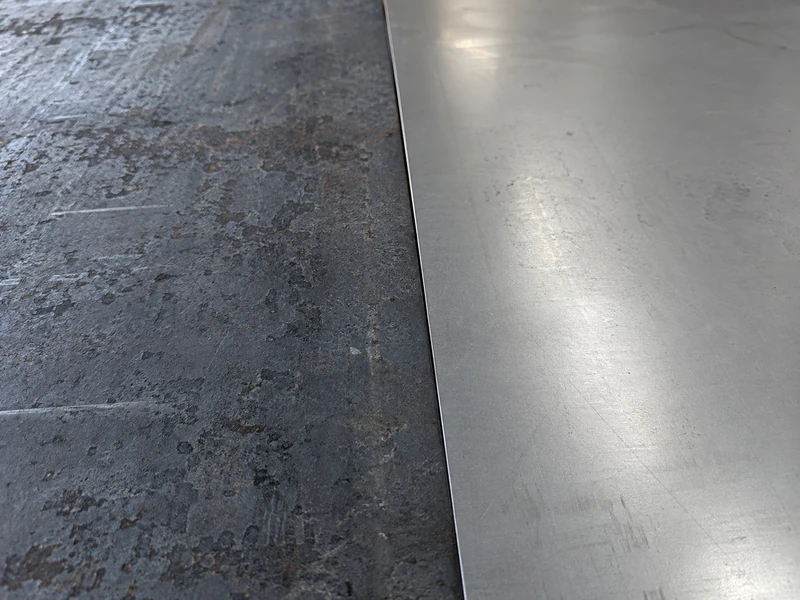

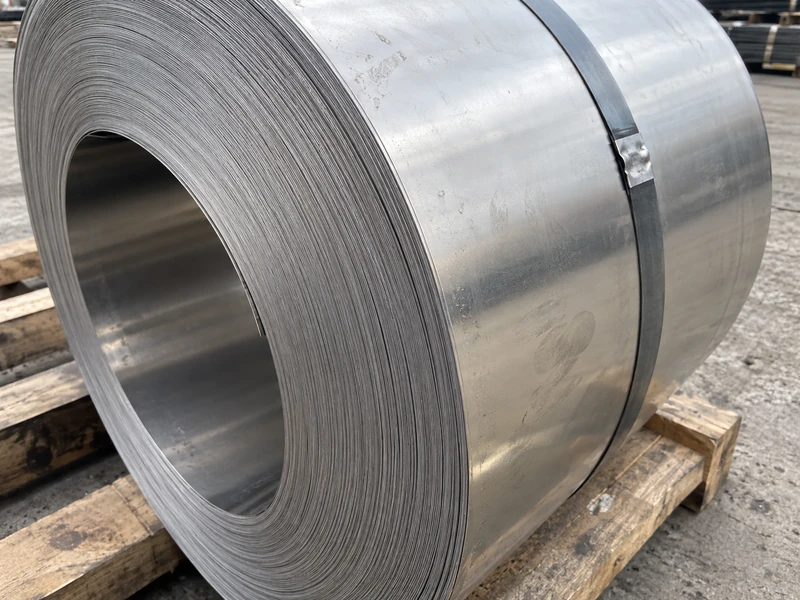

Cold rolling takes place at ambient temperatures using high-pressure rollers to refine the material's thickness, flatness, and grain structure. This improves dimensional control, work-hardens the metal, and improves the surface finish while obtaining tighter tolerances compared to hot rolled products.
Before cold rolling, the hot-rolled coil undergoes pickling in a chemical bath, usually nitric-hydrofluoric acid, to remove mill scale and prepare the surface for downstream processing. After cold rolling, it is typical to recrystallize the material by annealing and remove the newly formed scale by pickling.
Documents and Inspection
When an EN 10204 Type 3.2 certificate is requested, the manufacturing mill may prepare a 3.1 type certificate to present to the outside inspector to use as a basis for preparing the independent 3.2 certificate.
Before You Send the Inquiry
Before you send the inquiry, add the points above to the Your Inquiry field; the form itself has only four fields.
- A quotation needs the grade, finish, thickness, width, length and quantity.
Check the grade, finish and coil size against the Stainless Steel Coil page before you send it.
